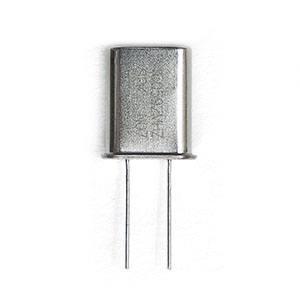

SPK HC-49/U series quartz crystal

• standarrd through-hole type, pitch 4.88 mm
• available in 3.0 – 20.0 MHz
• tolerance: 30 ppm; load capacity: 30 pF
• with 100 pcs. packed in plastic bag

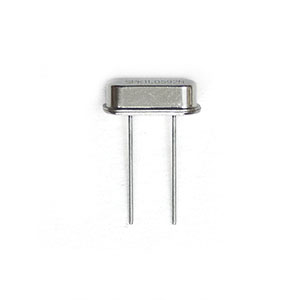

SPK HC-49/US series quartz crystal

• low profile through-hole type, pitch 4.88 mm
• available in 4.0 – 22.1184 MHz
• tolerance: 30 ppm; load capacity: 30 pF
• with 200 pcs. packed in plastic bag

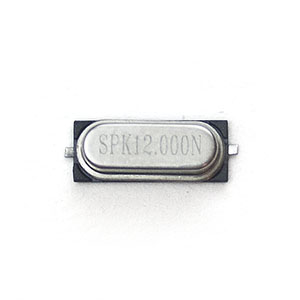

SPK HC-49/US-SMD series quartz crystal

• low profile SMD type, with isolated bottom
• available in 3.6864 – 20.0 MHz
• tolerance: 30 ppm; load capacity: 16 - 32 pF
• with 1,000 pcs. packed in tape & reel

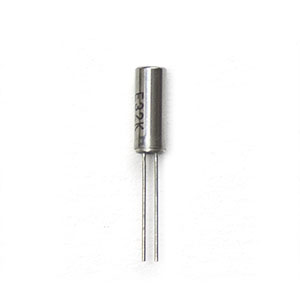

Epson C-002RX (cylinder type)

• cylinder model through-hole type 32.768 kHz
• tolerance: 8 ppm, load capacity: 12.5 pF
• dimensions: Ø2 × 6 mm
• bulk packed in plastic bag

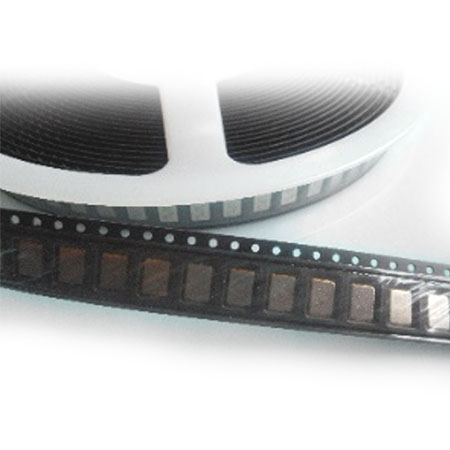

• a varierty of SMD housings is available, like 0507, 5032 en 3225
• quartz crystals 6.0 – 28.224 MHz, various specifications
• oscillatoren 4.0 – 50 MHz, 3.3 V
• with 1,000 pcs. packed in tape & reel
