ESD table mats and accessories
SN150 en SN157 series table mats
- synthetic rubber table mat 2 mm thickness, grey or beige colored
- dissipative, lightly structured top layer and conductive bottom layer
- heat resistant, safe for working with solder iron
- table mat sets with rounded corners and cables, or on roll
- table mat sets dim. 60x90 or 60x120 cm, rolls dim. 100 cm x 10 m

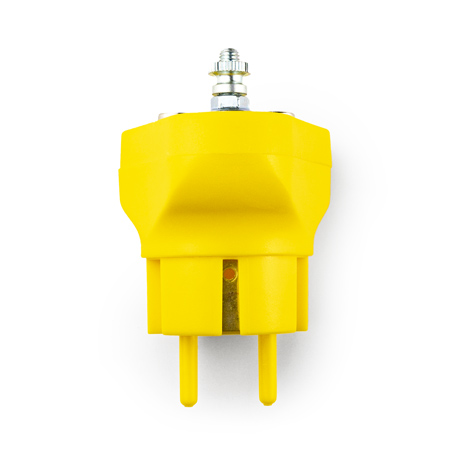

SN600-WP series grounding plugs
- for connection of grounding cables to wall socket ground pin
- with 2 pcs. 10 mm male stud and one pce. M5 post for eyelet
- other connections available, e.g. banana socket or 4 mm male stud
- with 1 MΩ built-in safety resistance

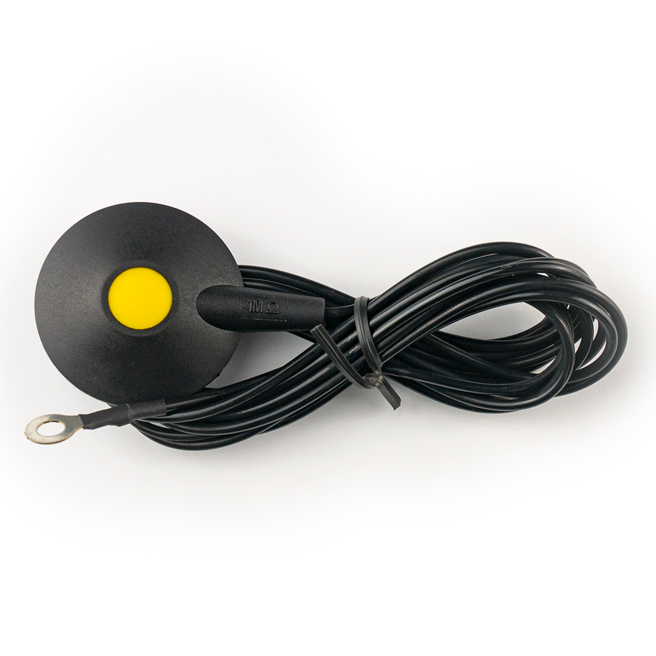

SN600 series grounding cables and snap fasteners
- black PU cable with 3m length for grounding of table- and floormats
- top-covered 10 mm female stud to 5 mm eyelet
- built-in safetey resistance 1MΩ
- chrome plated snap fasteners male stud, set of 10 pcs, for easy fastening in a table- or floormat

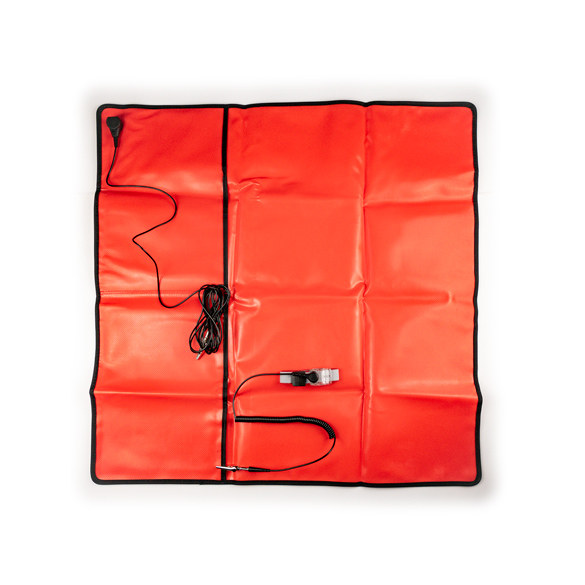

Field Service kit "grounding" SN158-FSK1
- static dissipative vinyl, red, 600 x 600 mm
- rounded corners with sewn border
- double pocket for storing tools
- including OneTouch wrist band with coil cord
- including grounding button and ground cord
Ionisation equipment

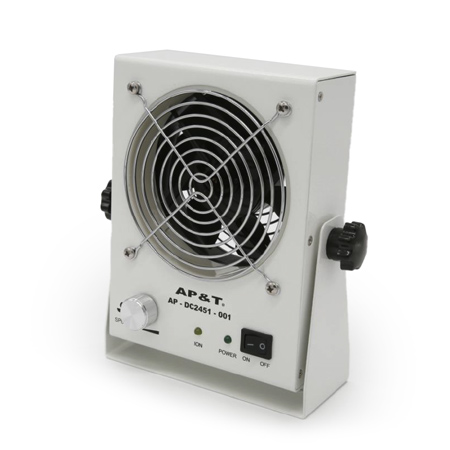

Compact benchtop ionizing blower DC2451
- to be used on or above the table top
- steplessly variable fan speed
- ion balance 0V +/- 10V
- discharge time 1000-100V at 300 mm: < 2 sec.
- 12W / 12VDC, 230V adaptor included

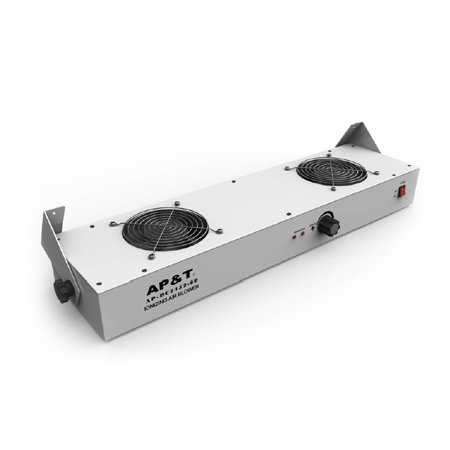

Overhead ionizing blower DC2452
- suited for use above the work bench or packing table
- with 2 or 3 fans, steplessly variable fan speed
- ion balance 0V +/- 10V
- discharge time 1000-100V at 450 mm: < 3 sec.
- 25W / 12VDC, 230V adaptor included
Other products for the E.P.A.

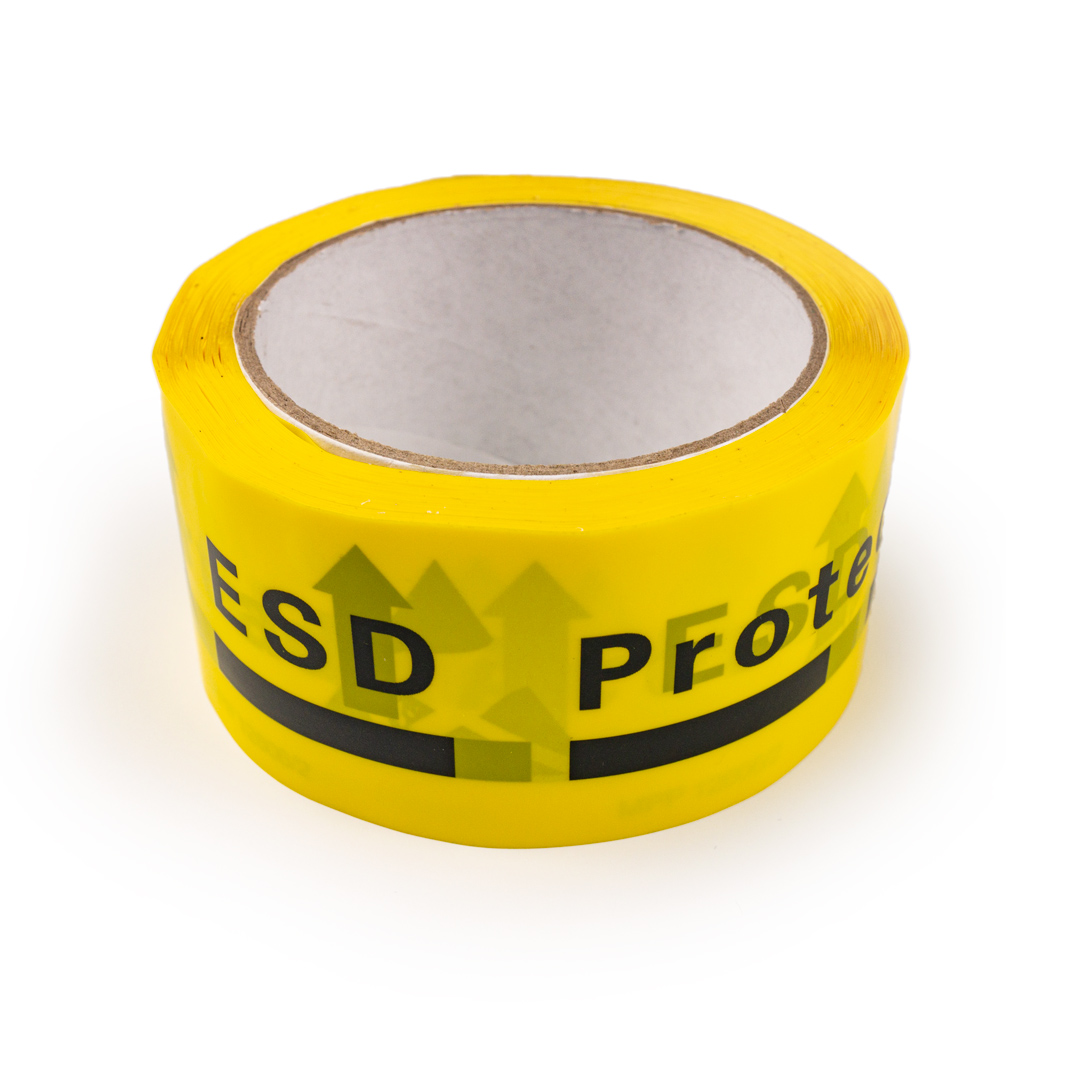

EPA boundry floor tape
- for marking the ESD protected area (EPA) on the floor
- durable selfadhesive PVC tape, roll of 33 m x 5 cm
- yellow with black printing “ESD protected area” and ESD-symbol

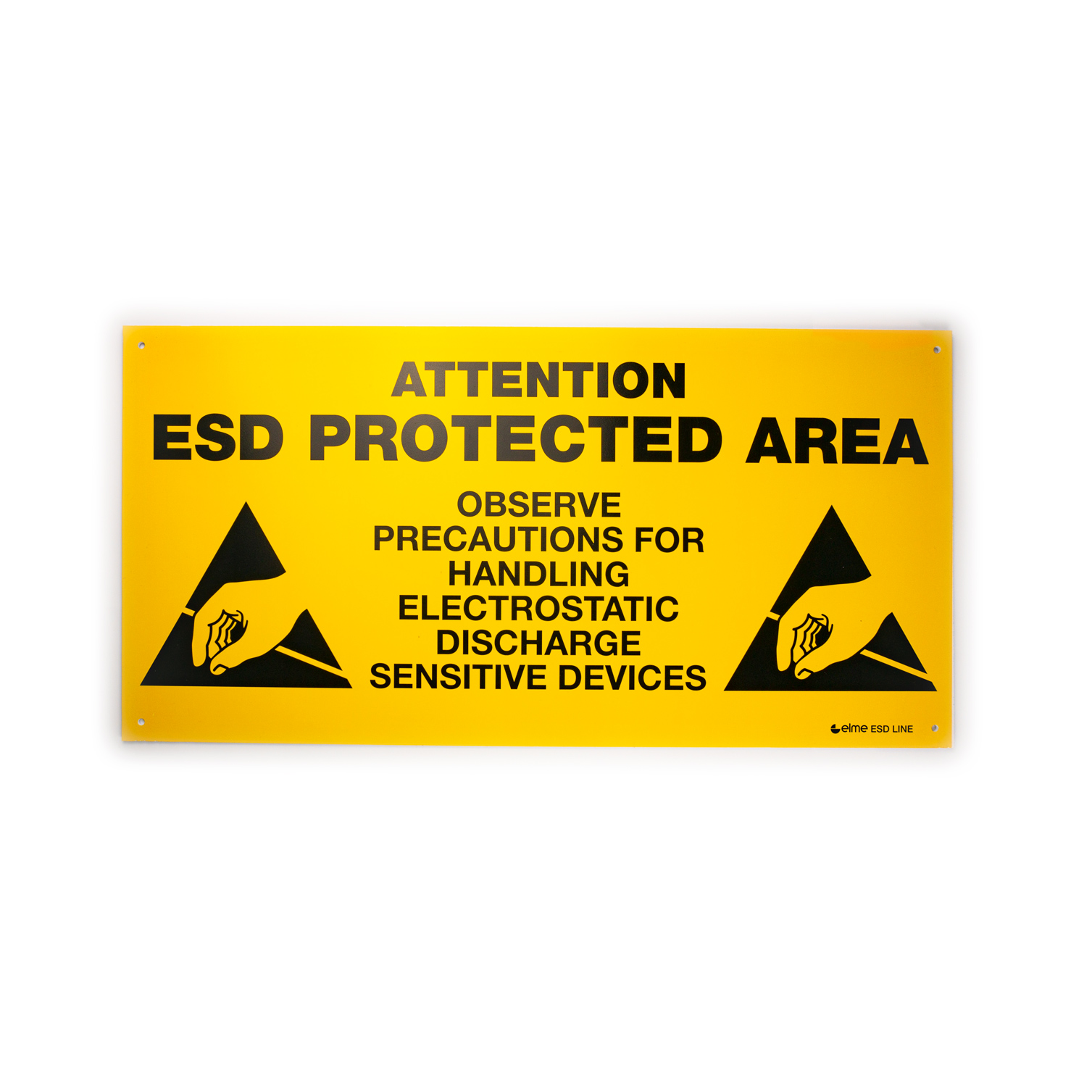

EPA Attenton sign
- to indicatie the entrance of the ESD protected area (EPA)
- sturdy PVC material for wall mounting, dim. 300 x 600 mm
- yellow with black printing of caution text and ESD-symbols
- also available as selfadhesive plastic sticker

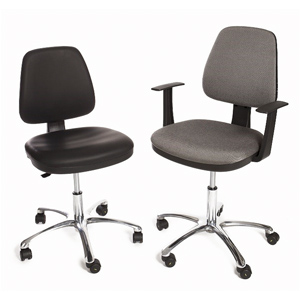

ESD safe desk chair
- professional ESD-safe chair with dissipative grey fabric and back shell
- polished anti-scratch aluminum base with five ESD caster wheels
- available in standard and extended height version
- adjustable sitting height and back rest angle
- optional arm rests and chrome-plated footring (extended height version)
- meets IEC 61340-5-1
Other products for use in the EPA:
- wrist strap- and ESD-footwear test equipment
- static field- and surface resistance measuring equipment

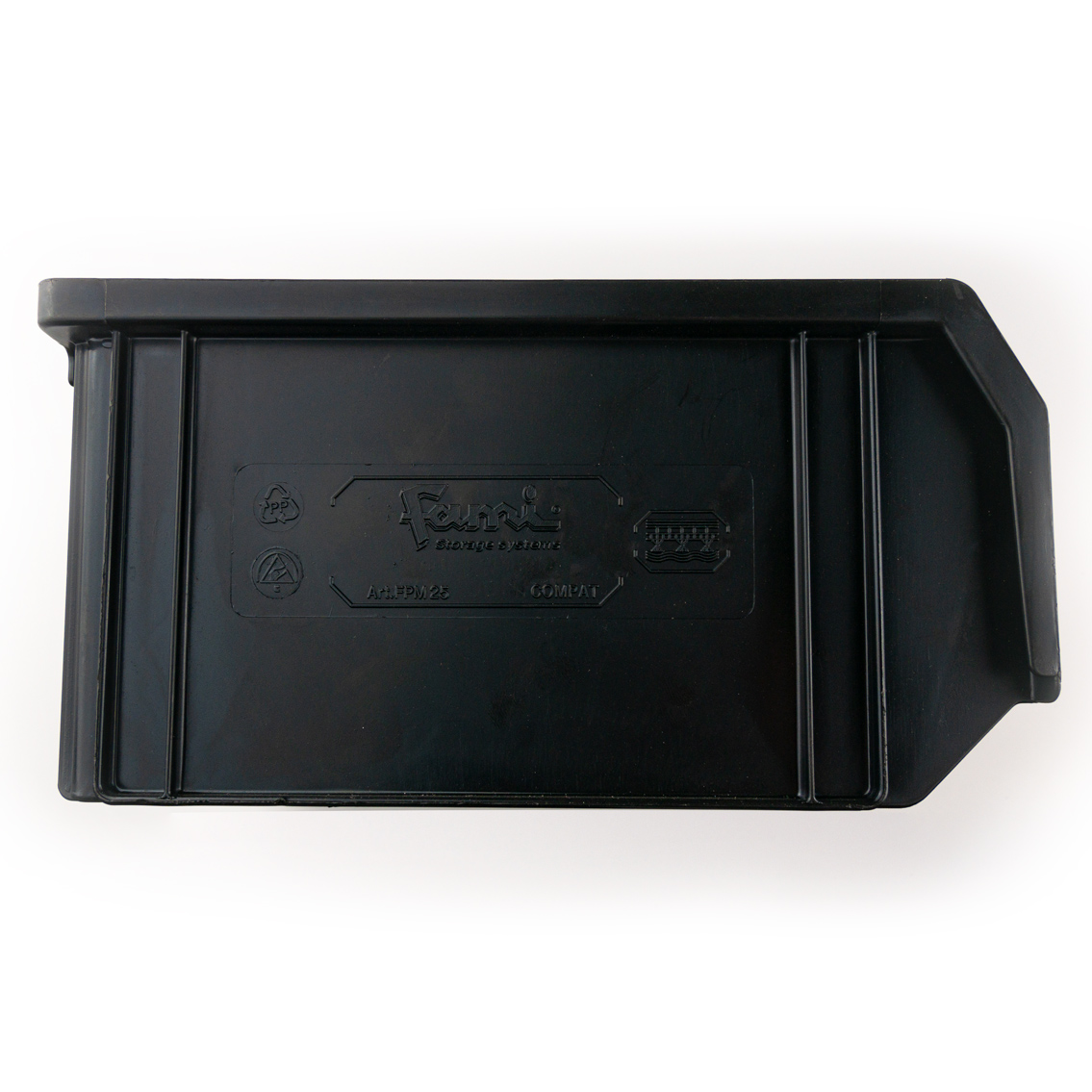

- ESD-safe containers for storing and transport of PCBoards
- contamination control mats (‘sticky mat’)
- adhesive copper tape, for connecting dissipative floor covering
- ESD cleaning products and dissipative floor wax
- ESD-safe office equipment like ballpoint pens and scissors
